Maximizing solar production with Victron GX
After the loss of Have Another Day, my primary DC test platform is Harvey, my family’s RV. Over the winter we upgraded from our previous 35-foot coach to a 43-foot Newmar Dutch Star. With that upgrade, I’ve added 1,350 watts of solar to the new RV. With all that solar, I wanted to ensure I was taking full advantage of the potential production. That sent me diving through the settings in my Victron system to figure out the best way to manage my system. Currently, I’m using a Virtual Switch in the inverter to manage DC power sources and it’s working quite well.
System overview

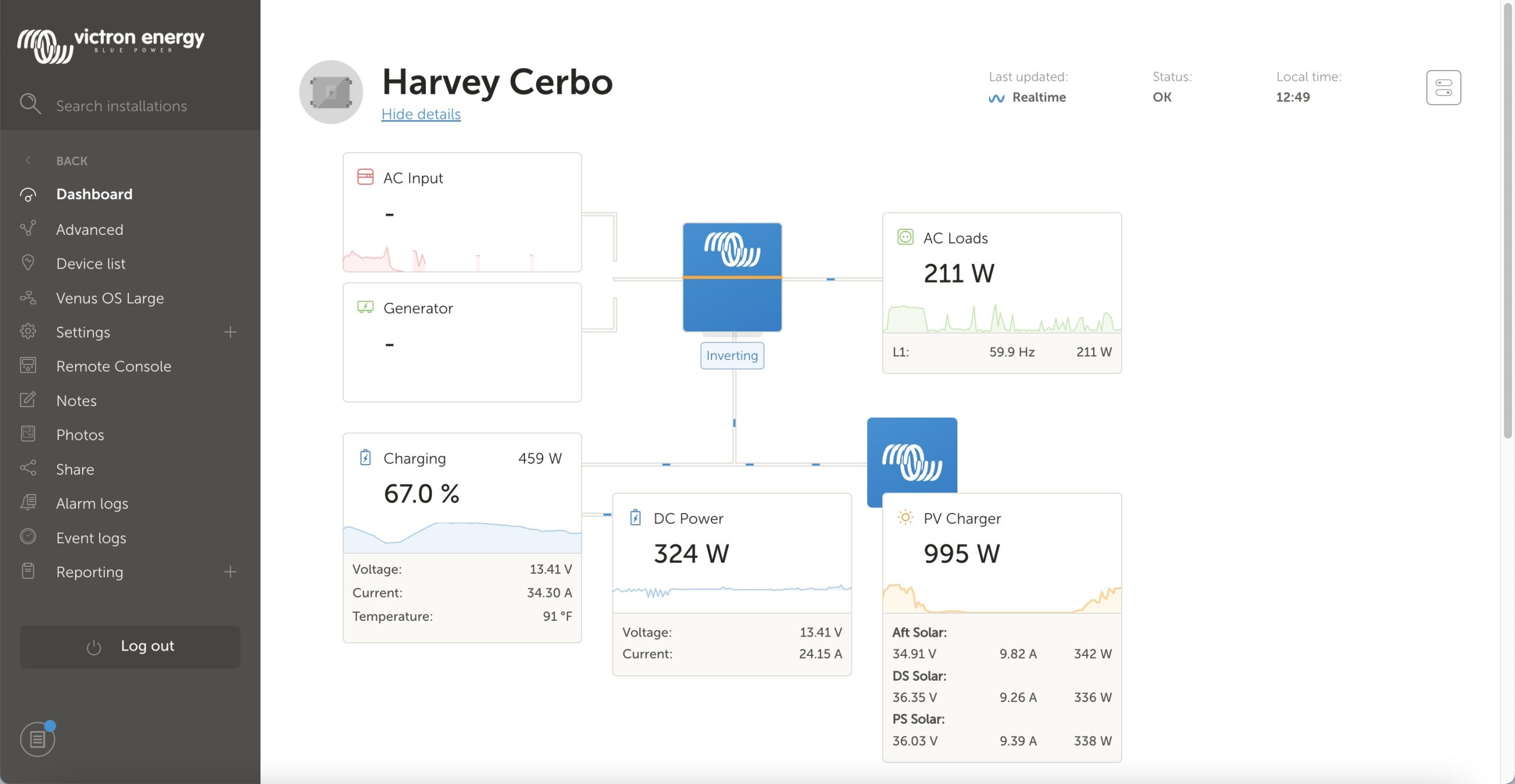

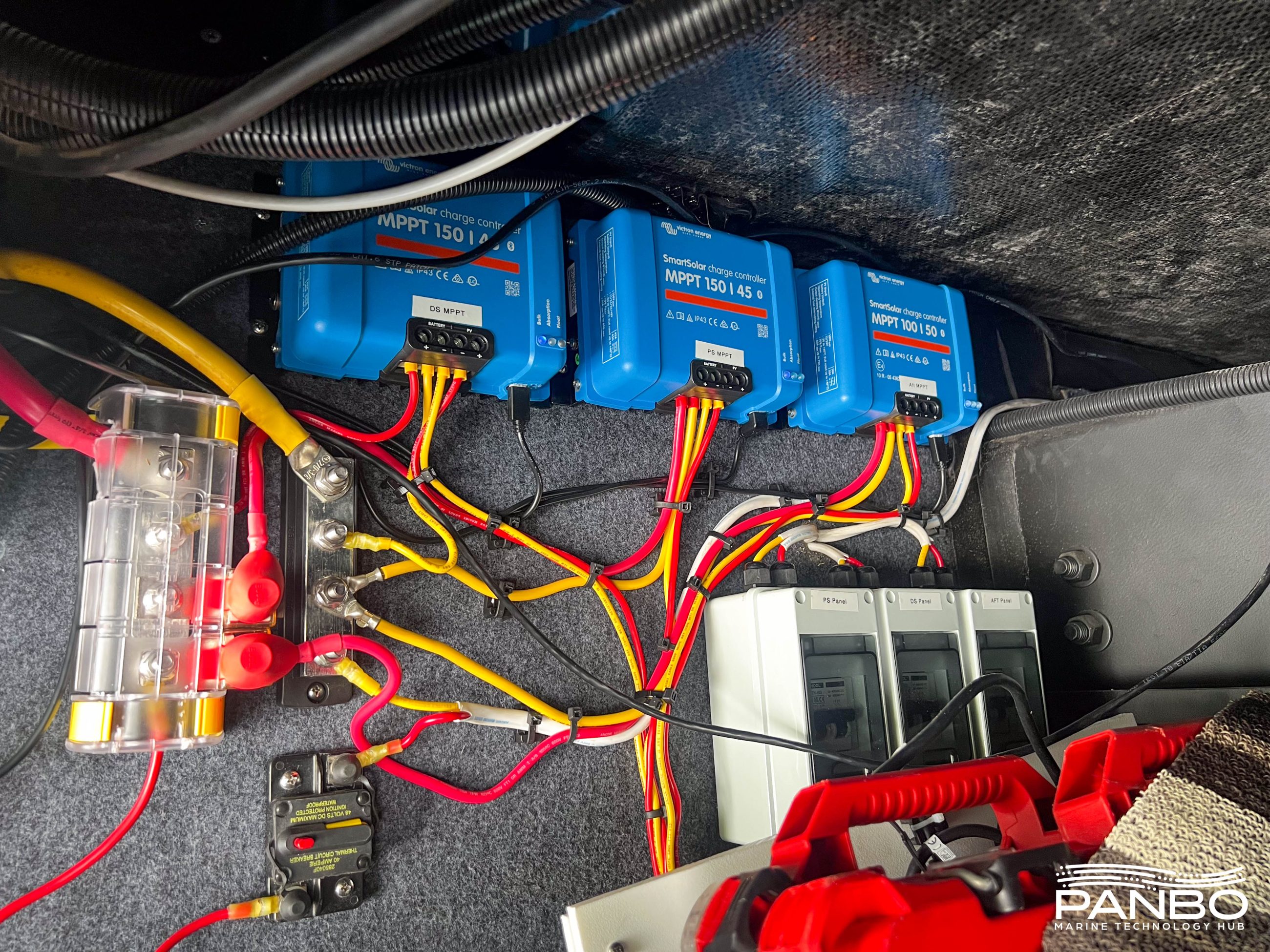

Harvey’s DC system is, thus far, a Victron affair. From the factory, Newmar equipped this coach with a Magnum system that I’ve removed. As a data junky, I love the information Victron’s remote access portal, VRM, gives as well as the detailed control of the system’s operations.

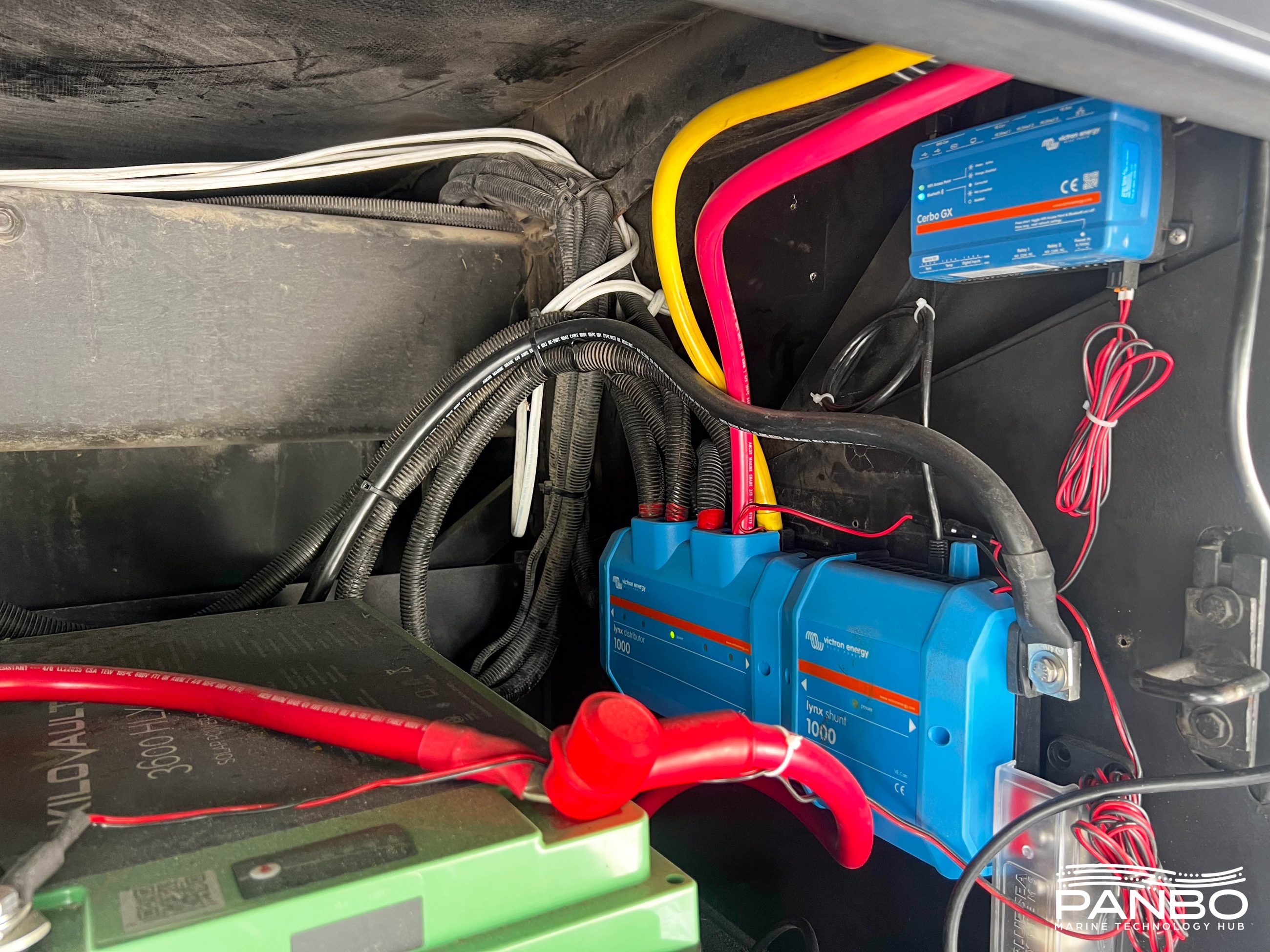

I continue to use two KiloVault HLX+ 3600 batteries giving me a total of 600 amp-hours of 12-volt nominal DC power. These batteries are powering the RV’s house DC loads and a Victron MultiPlus II 3000VA inverter. Charge sources to the system include three 450-watt solar panels connected to three Victron SmartSolar Charger MPPT 150/45 solar controllers. I’m also using a Lynx Distributor and Lynx Shunt for power distribution and monitoring. A Cerbo GX monitors the Victron components via Ve.Direct, Ve.CAN, and Ve.Bus.

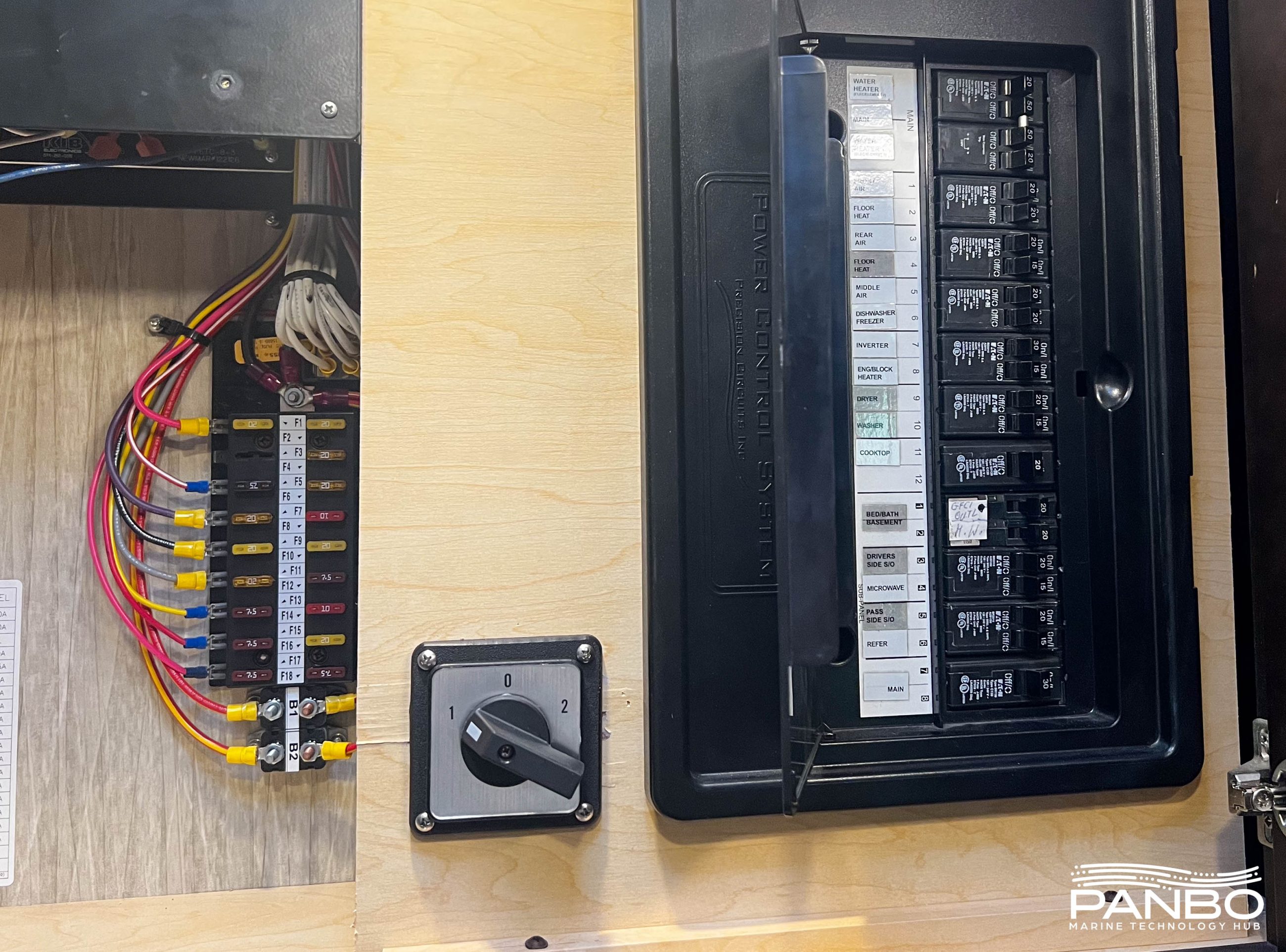

Lastly, I’ve made one important modification to the AC power system of the RV. My coach is equipped with three, 15,000 BTU 120-volt AC rooftop air conditioners. I’ve rewired the middle air conditioner to connect a rotary transfer switch that allows me to power that unit either from the non-inverted or the inverted power bus. That allows me to power that air conditioner without the generator running. But, at 15 amps of 120-volt AC, it’s a big load so either I have limited runtime or I need lots of sunlight to help offset it.
The “problem”
I’m not sure that describing my challenge as a problem is accurate. I guess it’s more of a desire to take full advantage of what I have. It doesn’t make sense to me to use utility power to charge the batteries and run the RV’s loads when I have 1.3 kilowatts of solar on the roof. So, the question is, how do I control shore power-based charging to work for my situation?

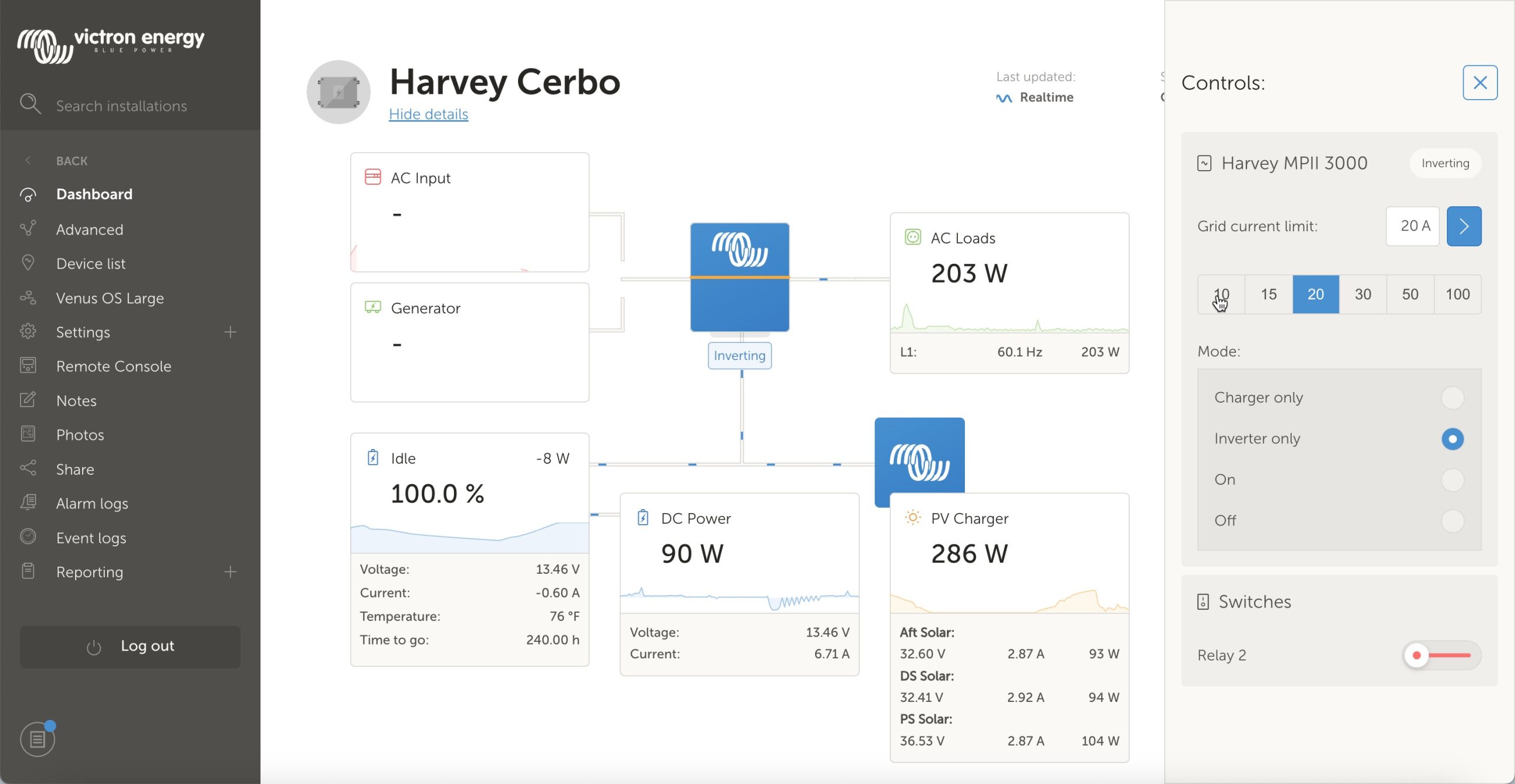

For quite some time I’ve manually done this by using VRM to change the inverter mode between on (inverter and charger enabled) and inverter only. When in inverter only, the MultiPlus won’t use mains power to pass through to loads or to charge the batteries. But, wouldn’t it be better if I could leverage all the smarts of my system to not use mains power until the batteries get low? Surely I’m not the first person to want this type of functionality, right?
The solution

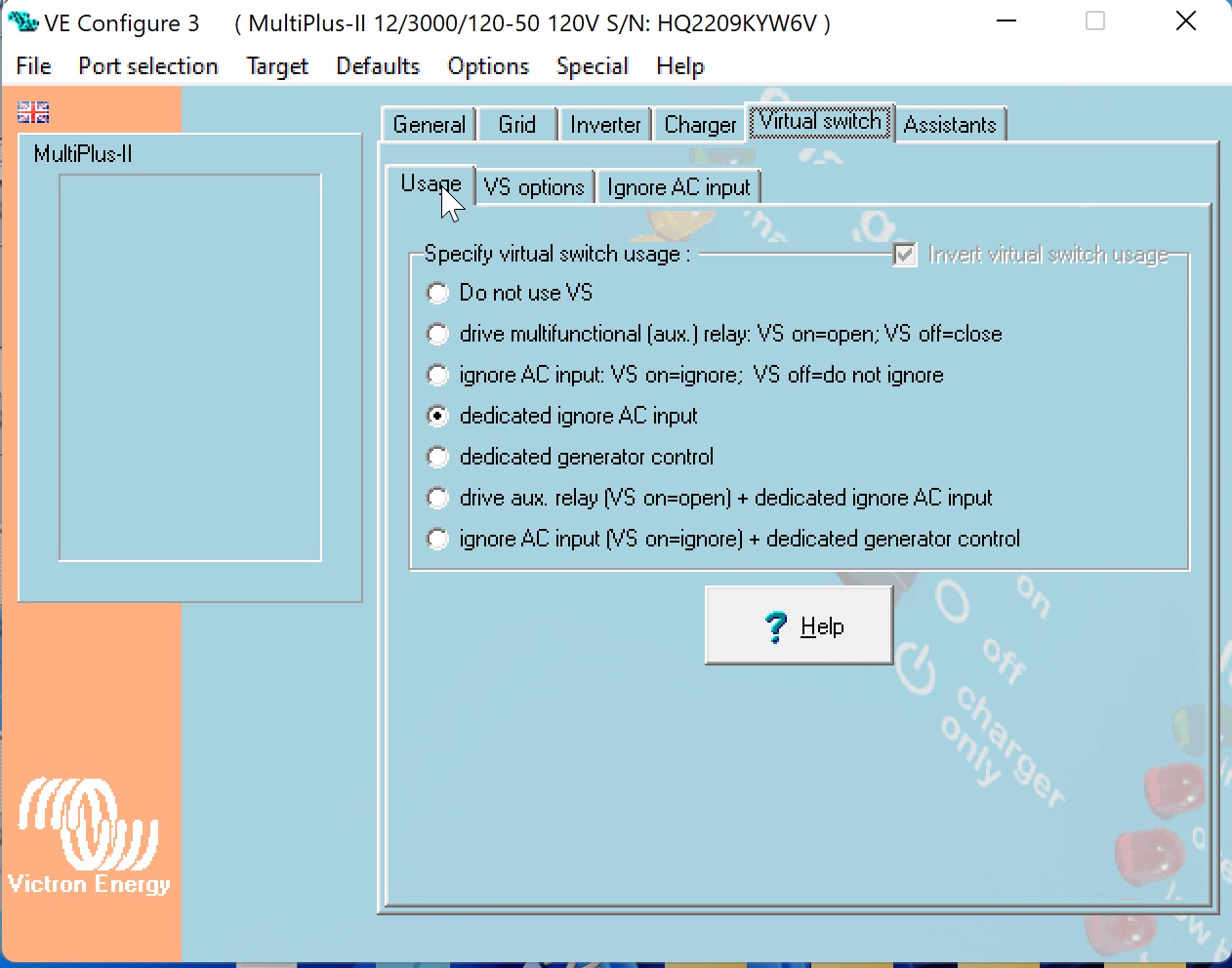

Indeed, I must not be. Victron has implemented a pretty elegant, though I don’t think widely known solution. In fact, in my searches, I found mentions of ignoring AC input dating back seven years. But with a name like “dedicated ignore AC input” I’d say the feature might have a marketing challenge. To effect this change, you will either need a GX device (Cerbo, Venus, Color Control, Raspberry Pi, or the new Ekrano) or an MK3 USB adapter.

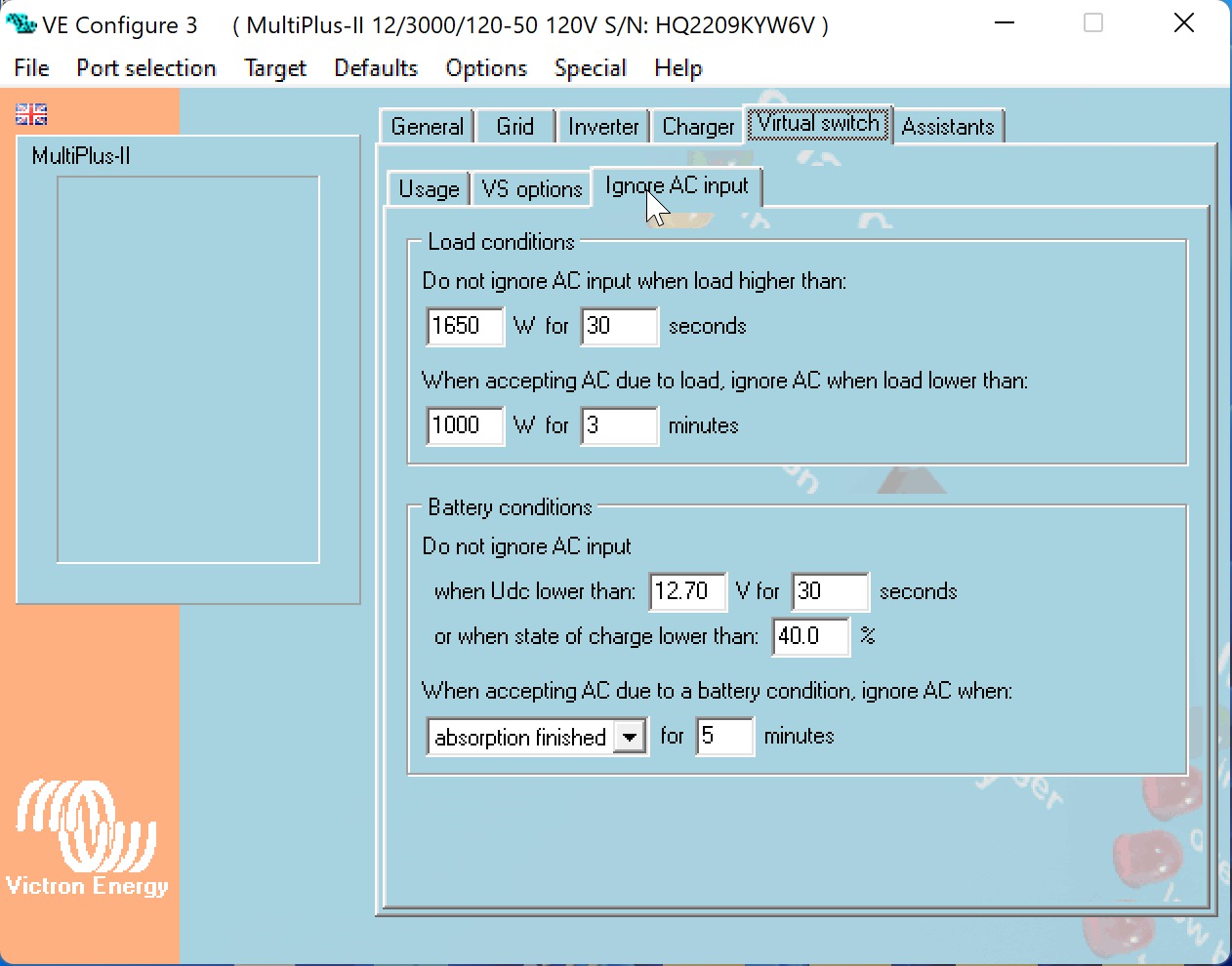

Ignore AC input configures the inverter to ignore its AC input as long as certain conditions are met. These conditions fall into two basic categories, AC load on the inverter and the battery’s state of charge and voltage. In the screenshot above, you can see the configuration I’ve been using. I have configured the MultiPlus II to not use AC power unless there is a load of greater than 1,650 watts for more than 30 seconds. It will continue to use mains power until the load is below 1,000 watts for 3 or more minutes.
Additionally, if the battery voltage drops below 12.7 volts and stays there for 30 seconds or if the state of charge is below 40 percent, the inverter will begin using mains power again. If a battery condition triggers the use of AC power, the inverter will continue to accept power until the specified condition is met. In my case, I’ve configured it to complete the absorption phase of charging and then wait five minutes. That should represent a full charge cycle.
Even more control

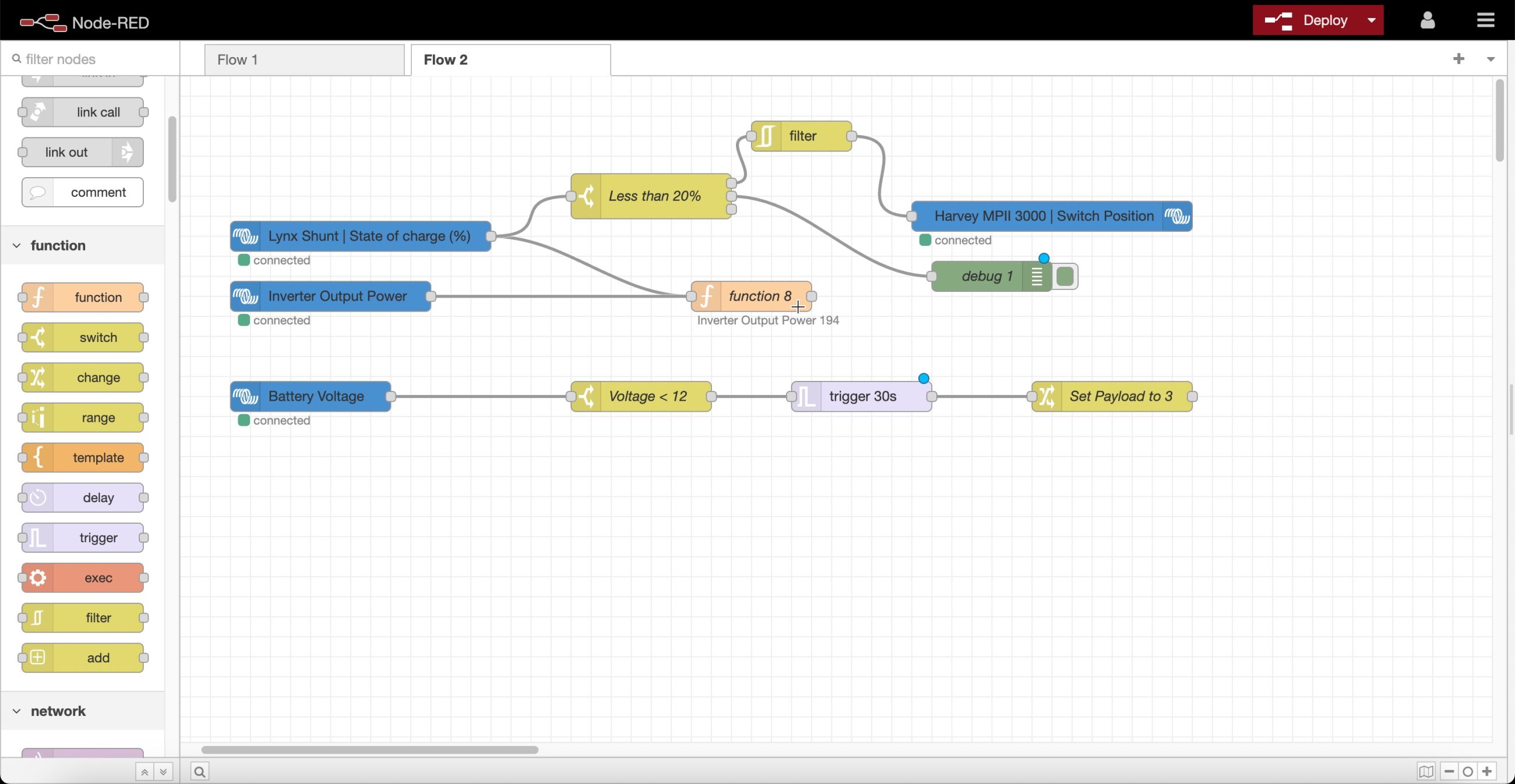

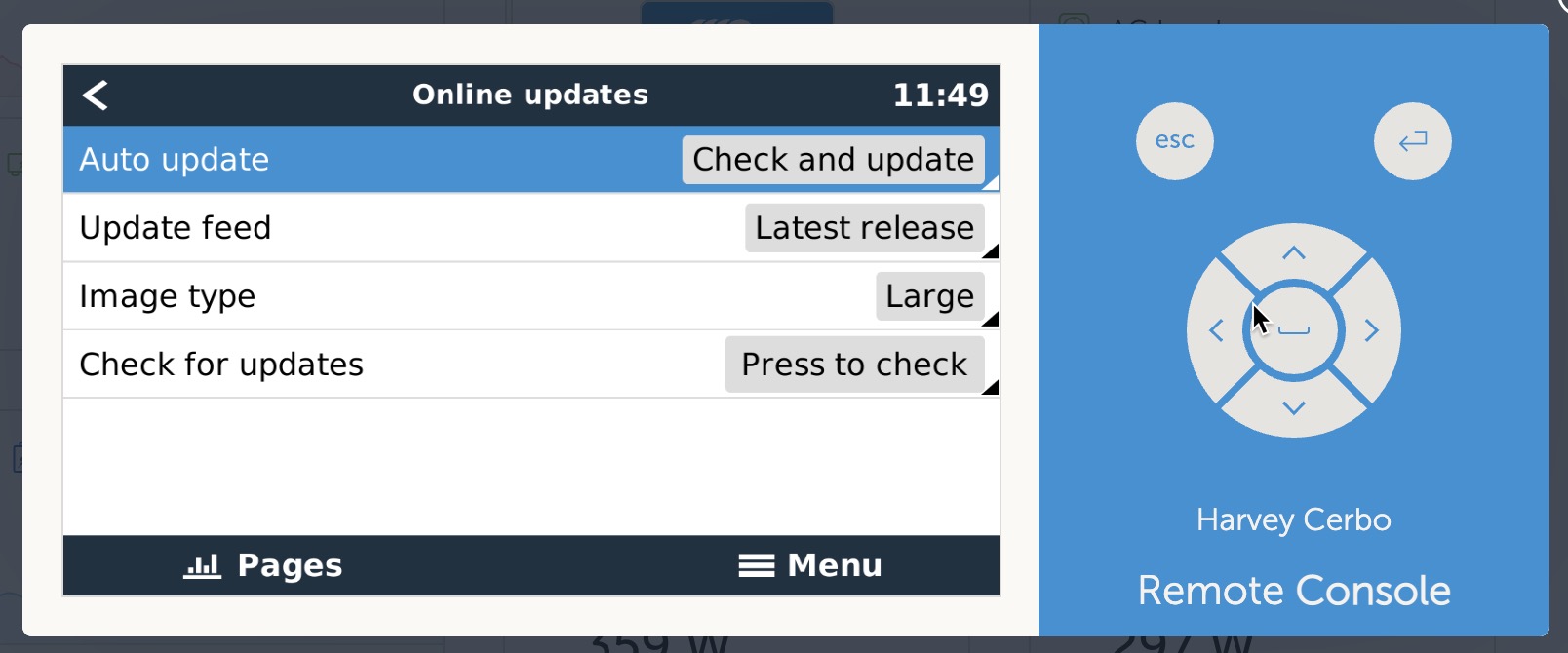

While exploring the best options for controlling the system I was reminded that the large distributions of Venus OS include Node Red and SignalK. I’ve had great success using Node-Red and SignalK server so I was pleased to get back to Node-Red for fine-grained control of the system’s behavior. I’ve experimented with Node-Red and found it to work well and provide relatively easy control of the system. For now, the automatic control provided by the Virtual Switch I described above is providing most of the control I need.
But, during our recent travels, I’ve found one very useful application for Node-Red flows, even with the Virtual Switch handling most of our automation. While staying at a site with only 30 amp power, I didn’t want the inverter to latch onto utility power. Even if they dipped below 40 percent, I didn’t want the inverter drawing power. So, I used the inverter control in VRM to change the inverter to invert-only mode. Thus, it won’t latch onto utility power, even if it’s available and the ignore AC input switch is off.

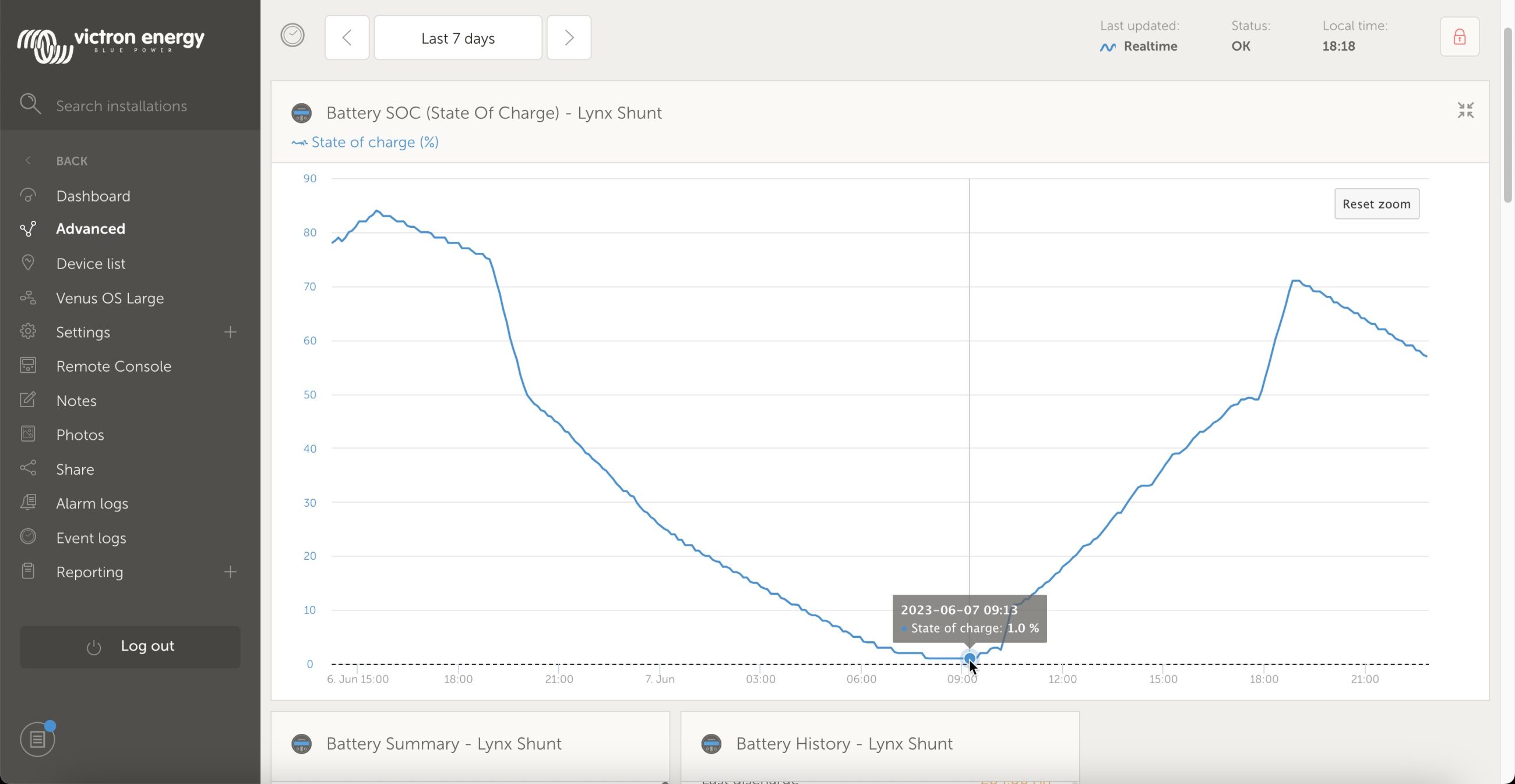

That accomplished what I needed, but I forgot to set the inverter back to on before going to bed. So, I was quite surprised to wake up in the morning and find the batteries at one percent state of charge. Now, I’ve set a rule in Node-Red that sets the inverter back to on. Currently, that’s set to trigger at 20% but I could easily change the percentage or use a voltage reading instead. That change won’t help if we don’t have shore power available, but it will in many scenarios.
Final thoughts
It’s no secret I’m a big fan of Victron’s gear and software. I love the GX ecosystem and the way all the Victron equipment ties together. So, this targetted automation does nothing but enhance my appreciation of Victron’s offerings. To me, this is another example of Victron doing clever things with the information already available on the network and using to add a valuable feature to the system.
I really appreciated the individual slip AC power metering at the Carolina marinas where Gizmo sometimes wintered. That’s because I believe we should pay proportionally for what we use from the grid as a matter of sound public energy policy. Plus I enjoyed paying less than normal flat rates because I’d made the boat pretty power efficient since it usually lives without shore power. But, dang, I never noticed the slick “Virtual Switch / Ignore AC Input” feature though I think it’s been available on Gizmo for many years. It’s small potatoes, I know, but my marina time could have been even less expensive and even less imposition on the grid that needs our tender loving care.
At any rate, nice catch, Ben S. Also, do you see individual power metering in many RV parks? I’ve advocated for it in local Maine marinas, but without success so far.
Ben E, I do see individual metering but for short-term overnight stays, I’ve never seen it used. I think it’s the norm in longer term, like monthly stays. That about mirrors what I’ve seen from marinas in Florida. I agree that individual metering is the right way to go about it, although it does come with some challenges. Many marinas that I’ve come across use the pretty crude odometer style electric meters built into many pedestals. Those can be quite inaccurate. In fact, I saw that inaccuracy at Legacy Harbour (of blessed memory) when we lived there. I’ve also recently seen there are class action lawsuits over marinas overcharging for electric (https://www.classaction.org/marina-electric-bill-overcharging-lawsuits).
-Ben S.
Ben: As a full-time RVer, yes, definitely there are some campgrounds with power metering. Like Ben Stein says, monthly is usually the trigger. I stumbled on all this because I have been … adamant that with my solar capabilities, that should be the priority for topping off the batteries. I’ve been working the last few days to solve why one of my two MPPT controllers wasn’t showing in the CCGX, and solved that, but the only reason I noticed is I’ve been playing with node-red (my own) as well as InfluxDB and Grafana for custom dashboards. Turns out I was behind on my Multiplus firmware updates. (My last version was from 2021.) I figure out how easy it was to update it based on our setup. So I did so, and in that process, leared about the new “Wind and Solar Priority”. But… I’m not a fan, mostly because they only support a voltage threshold, not a SoC, which I think was a good first step, but if that’s the long term plan, then it’s an oversight.
I turned that feature on today when I did the firmware upgrade. Getting ready to head to bed, saw our batteries were down to 60% and the CCGX didn’t show any shore power coming in. I didn’t see any of these Ignore AC *detailed* level setups in the phone app connected to the Multiplus. Maybe I need to use the Windows apps instead.
Hey Ben S. and Ben E. as well, that is an excellent write up. Nice!
We’ve been working on an alternative solution, basically limiting the Multi (or Quattro) to charge up to the float voltage only.
Thereby leaving the rest of charge to solar and wind.
Which of the two options (float only vs. ignore ac input) is best will depend a bit on the system.
I expect most larger systems to benefit most from the ignore ac input one, while smaller systems will be best helped with the float-only solution.
For both I want a user override, so that in case the user does want to charge asap, he can do so with an easy to find control. Rather than having to go into the settings.
Details here: https://www.victronenergy.com/live/ve.bus:skip-absorption.
Its all still in progress. The most difficult challenge has been, and still is, to find easy to understand wording and terminology.
All the best and thank you for that great article!
Matthijs / Victron.
Matthijs,
Thanks for your comment and for taking the time to fill us in on what’s upcoming. You did hit on one of the wishes I’ve had, easier manual control of ignore AC. I’m excited to see that’s coming soon!
-Ben S.
Thanks, Matthijs, and what lucky timing that Ben S wrote about “Ignore AC” for maximizing solar (and/or wind) charging just as you’re developing an alternate method.
“Float Only” charging does seem like a simple and safe alternative, and I certainly see the value of having an easily accessible off switch for either method that’s activated.
I picture, for instance, my boat happily using maximum solar generation in its slip, but then I want the batteries topped up before a cruise starting the next morning. In the Control section of the VRM Dashboard that might be a separate new checkmark line below the Multi control settings that reads “Ignore solar/wind charging prioritization”… or something like that.
Pretty neat.
a great example of the power of Signalk and NodeRed
to fine tune for specific use cases …. which given the multitude of factors and configurations.. some
of which you allude to .. will always be challenging for “even a victron” (very clever folk they are 🙂
to cater for everyones setup.
i have a similar, yet different challenge – to monitor shore power and “intelligently ” switch off and/or alert me of impending overload of shore power circuit … where similarly the very clever smarts and control in Quattro.. get me almost there… but not quite .
.. just love the Victron stuff for its cleverness !
(if only they could improve the “smarts” in the Orion Dc Dc units ….. still waiting 🙂
Greg,
Indeed, I think it’s impossible for Victron to anticipate every user’s needs and wants but, as you mention, Node Red and SignalK give users the tools to help themselves.
And… I couldn’t agree more about the DC-DC converters. I’d love to see them get VE.Direct connectivity and more smarts.
-Ben S.
i have a similar, yet different challenge – to monitor shore power and “intelligently ” switch off and/or alert me of impending overload of shore power circuit … where similarly the very clever smarts and control in Quattro.. get me almost there… but not quite .
For quite some time I’ve manually done this by using VRM to change the inverter mode between on (inverter and charger enabled) and inverter only. When in inverter only, the MultiPlus won’t use mains power to pass through to loads or to charge the batteries. But, wouldn’t it be better if I could leverage all the smarts of my system to not use mains power until the batteries get low? Surely I’m not the first person to want this type of functionality, right?
I wish that the charger-off function (pass through) in the mulitplus, which is accessible only through the mk3 usb dongle afaik, would be an option that is more user available from a cerbo for instance. The reason being, with the multi in pass through mode, you could use solar to cover your DC loads and charge the batts, but use shore for the AC loads only.
This is actually very easy to do–just leave the Multiplus ON and change your AC current limit to 0.0A on either the Cerbo or Multi Control. Multi Control is the easiest as there is a dedicated knob to adjust the AC current limit.
I don’t think that would accomplish what a3n describes. I believe 0 amp AC input limit stops the inverter from drawing any utility power, both for battery charging and for loads.
-Ben S.
Correct, i want AC to be passed through but just turn the charger portion of the multiplus off, which you currently need an mk3 and victron connect for to get into the expert settings
Ben, not correct. AC current limit never disconnects the output. You do need to take steps to have PowerAssist deactivated which can either be directly deactivating it or putting the unit in charge only mode. Either way it will not charge the batteries but pass AC through. I’ve done this many times.
Give it a try!
Ah-ha, there’s the key. If power assist is enabled, this won’t work. In fact on my 3k MPII with assist enabled, current limit can’t be set below 9.5 amps.
Giving up assist would be a nonstarter for me in my use cases but might work for others including a3n.
-Ben S
You don’t give up anything! As I said, put it in charge only—which always means PowerAssist is deactivated—and turn the AC current control to 0.0.
Less than one second to do with a Multi Control and exactly what he’s looking for—AC pass through with zero charge output from the Multiplus. Put the Multiplus back to invert/on, adjust your AC nput current limit, and PowerAssist is back how you had it. Again, less than one second to do on multi control.
Sorry, not trying to be thick. I’d missed the addition in your second message of shifting to charge only mode. If the inverter will go to a 0 amp limit that seems like it should work. I remember that there are variations in the lower limit but not the rules of those variations. I think, but don’t know for sure, that the rules may also be different if controlling with a GX device versus a Multi Control. I’m away from my system right now but will be back later. I’ll try on my system and see if it will let me get to a 0 amp limit.
-Ben S.
Great article! I’ve been wanting to do this very thing for a year now. Like you, I googled it, put questions in forums, and no bites.
However, I have a Multiplus, not a Multiplus II. The II added the virtual switching. Is there a way I can do this with code red and my Multiplus (I)?
Hi Mike,
I believe you would be able to do this with Node Red as long as you have a GX device running the large image. You would likely use value triggers to change the inverter from invert only to on depending on SOC.
Victron’s Youtube channel has getting started videos. Here’s the first in the series for Node Red: https://www.youtube.com/watch?v=i_iaciqn_Fg.
-Ben S.
thank you Matt and Ben,
I tried bringing the limit down to 0.0, but on a multiplus compact 2000/80/120, it will not go lower than 1.0 A. I am controlling it from a cerbo GX
on quattro/multiplus devices, there is a “minimum “ that can be set for the minimum current.
eg on my Quattro … i can only set it to 10A (min), trying to go lower will always default back to 10A.
there is a victron thread (& doc) that provides more info and the limits for each device (apparently is varies between quattro and multiplus, nd across the models)
https://community.victronenergy.com/questions/20956/what-is-the-minimum-input-current-limit.html
The linked document is quite useful. I also noticed the document seems to suggest the exact same thing Matt suggested:
“If you don’t want to use any PowerAssist from your batteries, switch to charger only and now the AC shore supply will still be on and the inverter will be off, leaving that 3.68kW AC shore supply available for DC charging and AC power for any small AC consumers, such as laptops, TVs, a toaster etc.
If you then set the current to zero the charger will be off, the AC supply will pass through and the inverter can’t kick in – handy if away from the boat and shore power fails, as then your batteries can’t be drained by the inverter whilst away. There’s even more sophistication and control if using a Color Control GX or Venus GX, but that is outside the scope of this blog.”
The document does go on to note that you may need a firmware update to fully take advantage of this. So, perhaps a3n’s inverter is in need of a firmware update?
But, it sure does look like Matt’s suggestion should work.
-Ben S.
I’ve been looking for this type solution as well. Even posted to Victron site and didn’t get anything back nearly as elegant as what you’ve outlined below.
In the catamaran setup, most new owners are getting big inverters, large lithium banks, with 1500-2500 watts of solar.
In my use case we moved the boat to the Bahamas and flew back and forth Mar-July. With all dockage having metered power at a cost of 0.65-0.85/kw finding a way to take advantage of our solar during the day and then few hours purely off batteries during the late evening after the absorb charge had completed would have gotten me through ~40-50% of peak power usage while at the dock.
So the latest Venus v3.10 includes the new solar/wind priority mode interface that Matthijs referenced and they came up with effective terminology (I think).
Now you can easily see that your Victron charger is in “Sustain” mode, and quickly switch to Charge mode if needed:
https://www.victronenergy.com/blog/2023/09/12/venus-os-v3-10-solar-and-wind-priority-generator-start-stop-ess/
Unfortunately this only seem to work for a week, then shoreline is used to keep the batteries fully charged after this.
As I look at your settings I have two requests as I am having issues setting it up in my motorhome. !) what is the total PV wattage that you have and 2) what is you battery wattage compacity Thank you for your help.
These settings are from a previous setup but that had 600 amp hours of batteires at 12v, so roughly 7.2 kilowatt hours of batteries and 800 watts of solar.
-Ben S.
